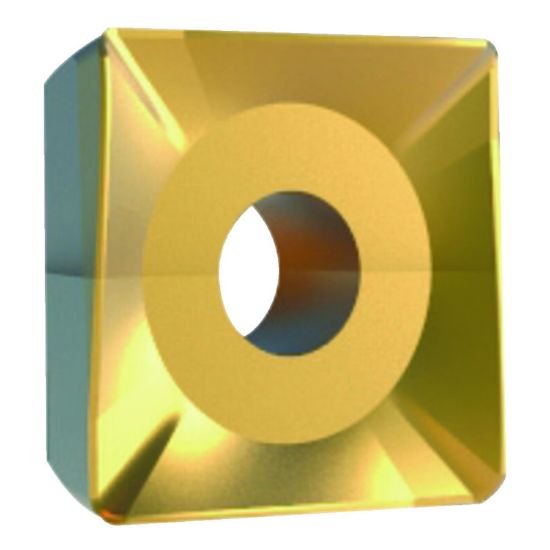

Picture of Widia/Kennametal SDMX543RMH TN7535 Milling Insert Square TiN + TiCN + Al2O3 0.046 Corner Radius

Widia/Kennametal SDMX543RMH TN7535 Milling Insert Square TiN + TiCN + Al2O3 0.046 Corner Radius

Part Number: WID3950584 ISO: SDMX150612RMH TN7535 ANSI:SDMX543RMH TN7535

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1017996
Vendor: Sussex Tool and Supply
$25.95
This product has a minimum quantity of 10
WIDIA SDMX150612RMH TN7535 Square Positive Insert CVD multilayer for steels and cast irons for interupted cutting
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <40HRC Steel, Ductile Iron
Coating TiN + TiCN + Al2O3
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Corner Radius 0.0469 1.19MM
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Grade TN7535
Insert Type Positive
Insert Size Ic 15
Insert Fits Square
Hand Right Hand
