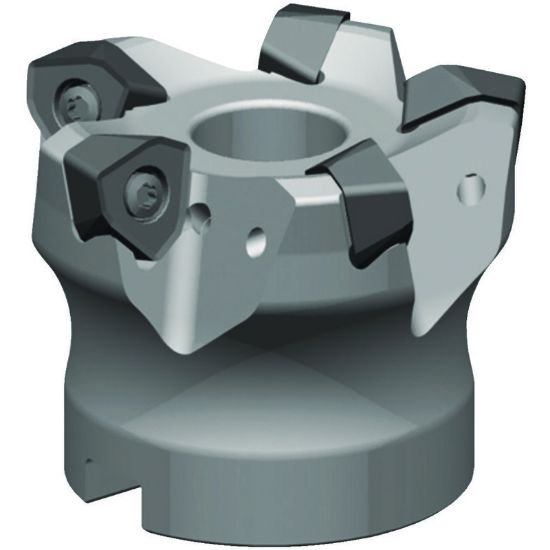

Picture of Widia/Kennametal M370D600Z09S200WO12 Milling Cutter 6.000 Cutter Diameter Face Mill 2.000

Widia/Kennametal M370D600Z09S200WO12 Milling Cutter 6.000 Cutter Diameter Face Mill 2.000

Part Number: WID6030307 ISO: M370D600Z09S200WO12 ANSI:M370D600Z09S200WO12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019131
Vendor: Sussex Tool and Supply
$1,428.76
WIDIA 6030307 Trigon Feed Mill SHELL2.0000 Negative 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 2.0000 50.80MM
Overall Length 2.3750 60.33MM
Coolant Thru Thru Coolant
Flutes/Inserts 9
Tool Dia 6.0000 152.40MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 12
Cut Dia Min 5.3320 135.43MM
Hand Right Hand
Depth Of Cut Max 0.0780
Max RPM 8000
