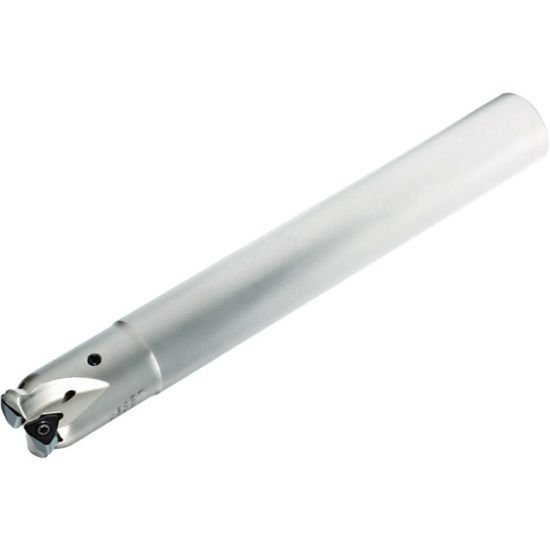

Picture of Widia/Kennametal M370D150Z03C125WO08L800 Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

Widia/Kennametal M370D150Z03C125WO08L800 Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

Part Number: WID4171167 ISO: M370D150Z03C125WO08L800 ANSI:M370D150Z03C125WO08L800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018964
Vendor: Sussex Tool and Supply
$464.42
WIDIA 4171167 Trigon Feed Mill End Mill Cylindrical 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 7.6860 195.22MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 0.9500 24.13MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 15000
