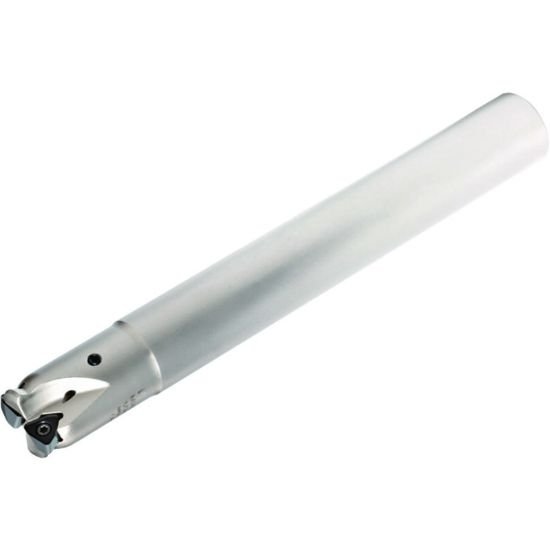

Picture of Widia/Kennametal M370D125Z03C125WO08L600 Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

Widia/Kennametal M370D125Z03C125WO08L600 Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

Part Number: WID4047657 ISO: M370D125Z03C125WO08L600 ANSI:M370D125Z03C125WO08L600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018936
Vendor: Sussex Tool and Supply
$383.36
WIDIA 4047657 Trigon Feed Mill End Mill Cylindrical 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 0.7000 17.78MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 14600
