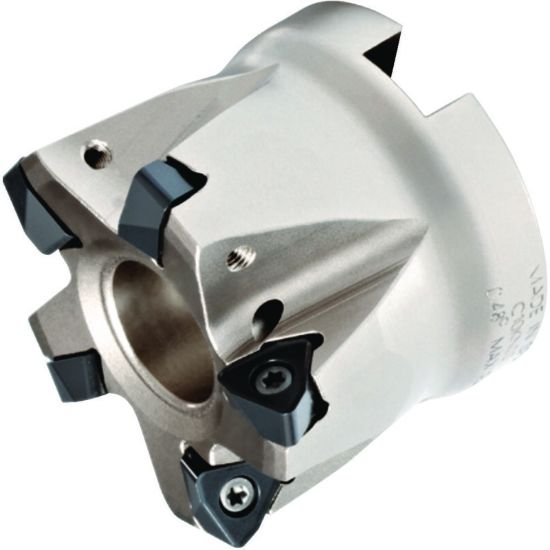

Picture of Widia/Kennametal M370D050Z05WO08 Milling Cutter 1.968 Cutter Diameter Face Mill 0.866

Widia/Kennametal M370D050Z05WO08 Milling Cutter 1.968 Cutter Diameter Face Mill 0.866

Part Number: WID4008276 ISO: M370D050Z05WO08 ANSI:M370D050Z05WO08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018930
Vendor: Sussex Tool and Supply
$535.88
WIDIA 4008276 Trigon Feed Mill SHELL0.8661 Negative 1.9680 49.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.8661 22.00MM
Overall Length 1.5750 40.01MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.9680 49.99MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 1.4200 36.07MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 8400
