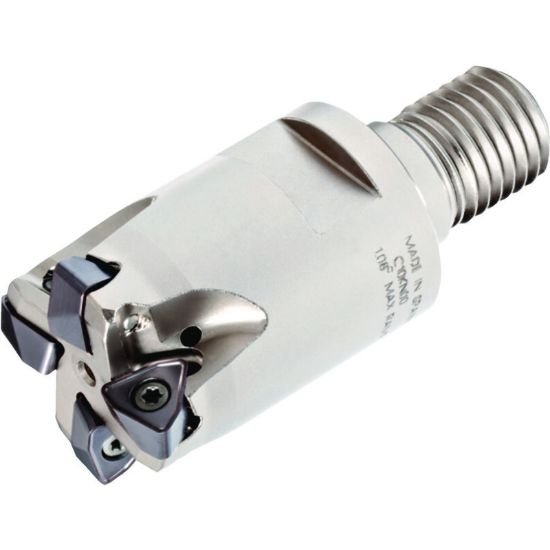

Picture of Widia/Kennametal M370D042Z05M16WO08 Milling Cutter 1.653 Cutter Diameter Screw On M16

Widia/Kennametal M370D042Z05M16WO08 Milling Cutter 1.653 Cutter Diameter Screw On M16

Part Number: WID4056188 ISO: M370D042Z05M16WO08 ANSI:M370D042Z05M16WO08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018943
Vendor: Sussex Tool and Supply
$423.18
WIDIA 4056188 Trigon Feed Mill Thread On SCREWM16 Negative 1.6530 41.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Overall Length 2.6570 67.49MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.6530 41.99MM
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 1.1000 27.94MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 10100
