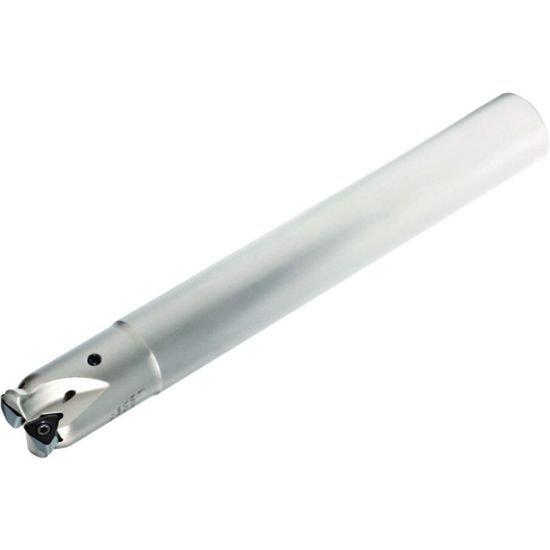

Picture of Widia/Kennametal M370D028Z03A25WO08L200 Milling Cutter 1.102 Cutter Diameter Cylindrical 0.984

Widia/Kennametal M370D028Z03A25WO08L200 Milling Cutter 1.102 Cutter Diameter Cylindrical 0.984

Part Number: WID4056190 ISO: M370D028Z03A25WO08L200 ANSI:M370D028Z03A25WO08L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018945
Vendor: Sussex Tool and Supply
$410.84
WIDIA 4056190 Trigon Feed Mill End Mill Cylindrical 0.9843 Negative 1.1020 27.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.9843 25.00MM
Overall Length 7.8740 200.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 3
Tool Dia 1.1020 27.99MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 0.5600 14.22MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 17300
