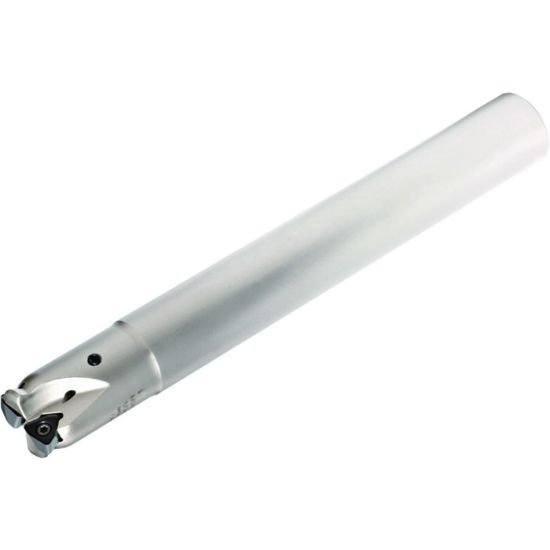

Picture of Widia/Kennametal M370D025Z03A25WO08L200 Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

Widia/Kennametal M370D025Z03A25WO08L200 Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

Part Number: WID4170919 ISO: M370D025Z03A25WO08L200 ANSI:M370D025Z03A25WO08L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018959
Vendor: Sussex Tool and Supply
$395.73
WIDIA 4170919 Trigon Feed Mill End Mill Cylindrical 0.9843 Negative 0.9840 24.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.9843 25.00MM
Overall Length 7.8740 200.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 3
Tool Dia 0.9840 24.99MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WO
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 804
Cut Dia Min 0.4400 11.18MM
Hand Right Hand
Depth Of Cut Max 0.0490
Max RPM 14100
