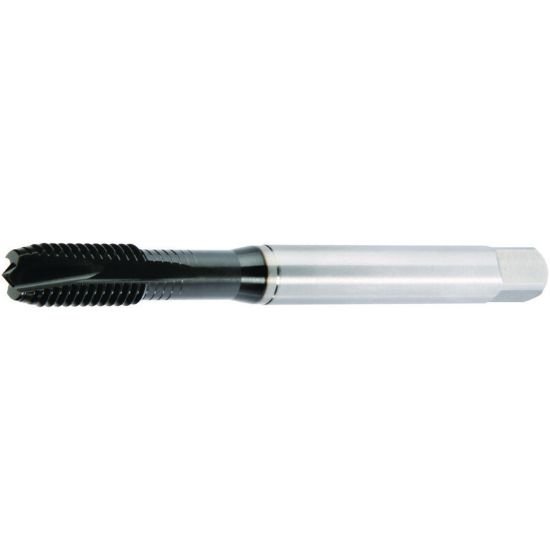

Picture of Widia/Kennametal GT705006 M10-1.50mm Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Widia/Kennametal GT705006 M10-1.50mm Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal DLC

Part Number: WIDGT705006

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169882
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4160041 M10x1.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE-PM DLC 6H Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating DLC
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M10
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.3150
Tap Chamfer 3.0P-5.5P
