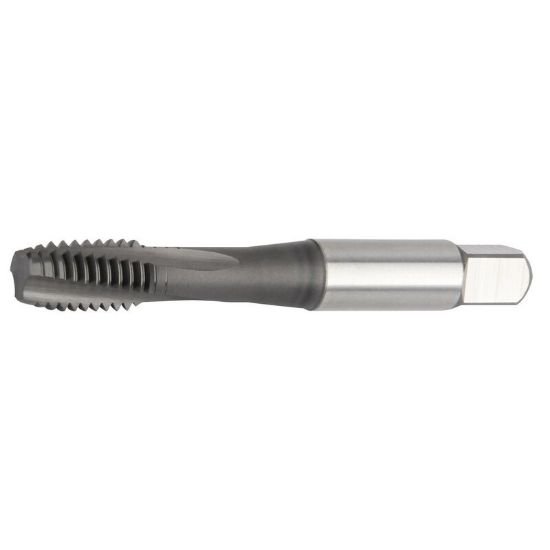

Picture of Widia/Kennametal GT625504 M2.5-0.45mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Widia/Kennametal GT625504 M2.5-0.45mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-Powder Metal TiN + CrC

Part Number: WIDGT625504
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$74.33
SKU: 1171258

Description

WIDIA 5565220 M2.5x0.45MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-PM TiN + CrC D3 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 1.8100 45.97MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 0.45MM
Thread Size M2.5
Tap Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Tap Square 0.1080
Performance & Capacity
Cut Rating High Temp, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiN + CrC
Standards & Identification
Dimension Standard ANSI/ANSI
