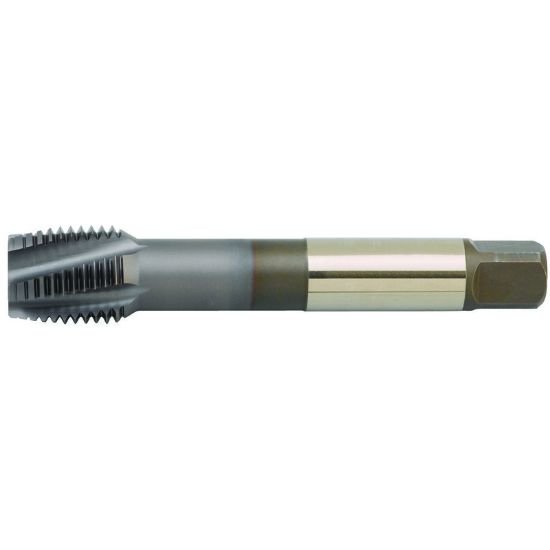

Picture of Widia/Kennametal GT315027 M30-3.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Widia/Kennametal GT315027 M30-3.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN

Part Number: WIDGT315027

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169683
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4033746 M30x3.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 7.0900 180.09MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.8661 22.00MM
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 3.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M30
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 1.0583 26.88MM - 1.0890 27.66MM
Tap Square 0.7090
Tap Chamfer 2.0P-3.0P
