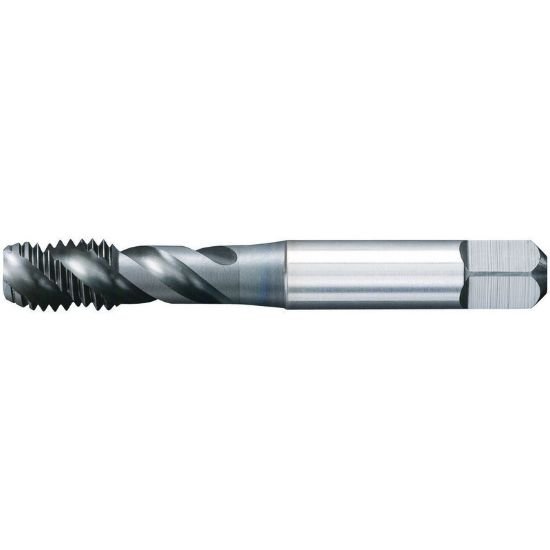

Picture of Widia/Kennametal GT305062 M4-0.70mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Widia/Kennametal GT305062 M4-0.70mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal CrC + C

Part Number: WIDGT305062
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.88
SKU: 1169517

Description

WIDIA 3955061 M4x0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM CrC + C 6H Metric Steel A new development in cutting tools has been made for machining aluminum. Hybrid PVD coatings consisting of a super hard TiSiN base layer and a low friction CrCx/a-C:H top layer are used on cutting tools where the combination of low friction and resistance to abrasion is required. When machining aluminum silicon, CrCx/a-C:H resists the adhesion and galling of aluminum to the cutting tool by reducing friction and TiSiN strongly resists abrasive wear.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Thread Pitch 0.70MM
Thread Size M4
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1290
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating CrC + C
Standards & Identification
Dimension Standard ANSI/ANSI
