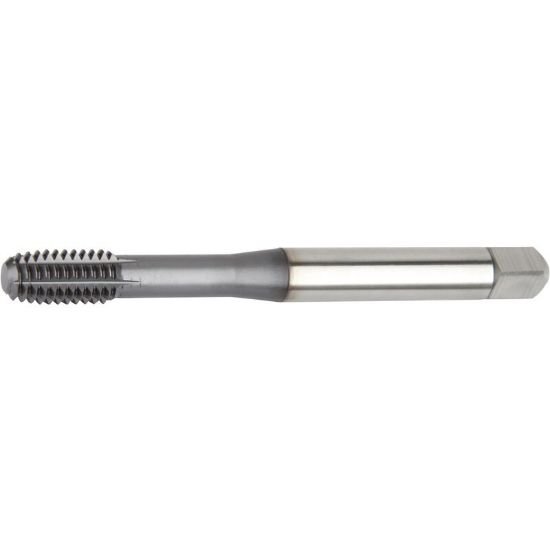

Picture of Widia/Kennametal GT265042 3/4-10.00TPI Over Sized Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal GT265042 3/4-10.00TPI Over Sized Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WIDGT265042

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171941
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5945131 3/4"x10.00TPI Over Sized Roll Form Bottoming 1.0P-2.0P HSSE TiCN GH7 +0.0035 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 4.9210 124.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit GH7 +0.0035
Tap Style Over Sized Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.6988 17.75MM - 0.7126 18.10MM
Tap Square 0.4390
Tap Chamfer 1.0P-2.0P
