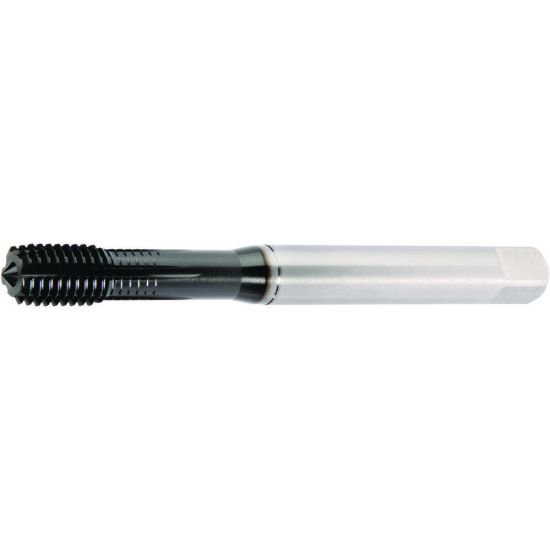

Picture of Widia/Kennametal GT225020 M8-1.25mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Widia/Kennametal GT225020 M8-1.25mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: WIDGT225020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169823
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 4158499 M8x1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 3.5430 89.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit 6H
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Tap Square 0.2440
Tap Chamfer 2.0P-3.0P
