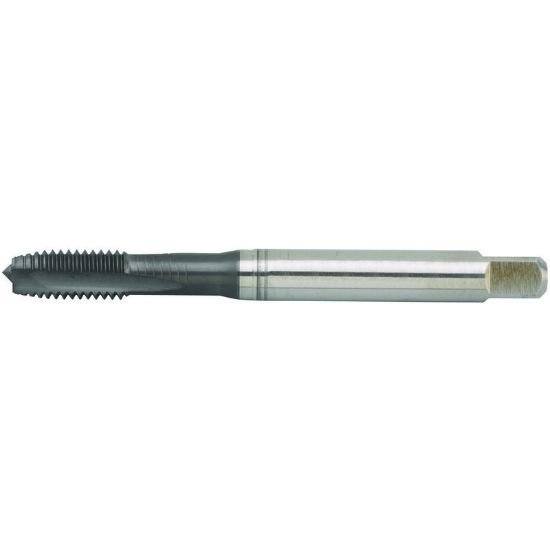

Picture of Widia/Kennametal GT145004 M6-1.00mm Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Widia/Kennametal GT145004 M6-1.00mm Cut Spiral Point Plug 3.0P-5.5P HSSE-Powder Metal TiN + DLC

Part Number: WIDGT145004
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$112.72
SKU: 1169895

Description

WIDIA 4160096 M6x1.00MM Cut Spiral Point Plug 3.0P-5.5P HSSE-PM TiN + DLC 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 3.1560 80.16MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1930
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiN + DLC
Standards & Identification
Dimension Standard DIN/DIN
