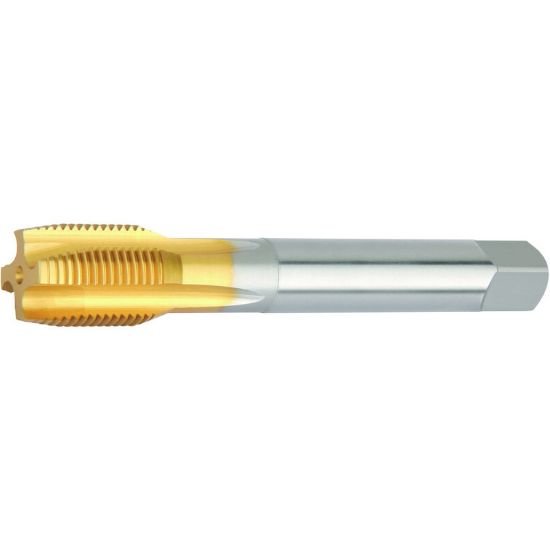

Picture of Widia/Kennametal 6058797 3/4-14.00TPI Pipe Spiral Flute Pipe HSSE TiN

Widia/Kennametal 6058797 3/4-14.00TPI Pipe Spiral Flute Pipe HSSE TiN

Part Number: WID6058797

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171989
Vendor: Sussex Tool and Supply
$407.25
WIDIA 6058797 3/4"x14.00TPI Pipe Spiral Flute Pipe HSSE TiN PIPE BSP Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 5.5120 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7870 19.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type BSP
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard DINSI
Tap Drill Range 0.9646 24.50MM
Tap Square 0.6300
