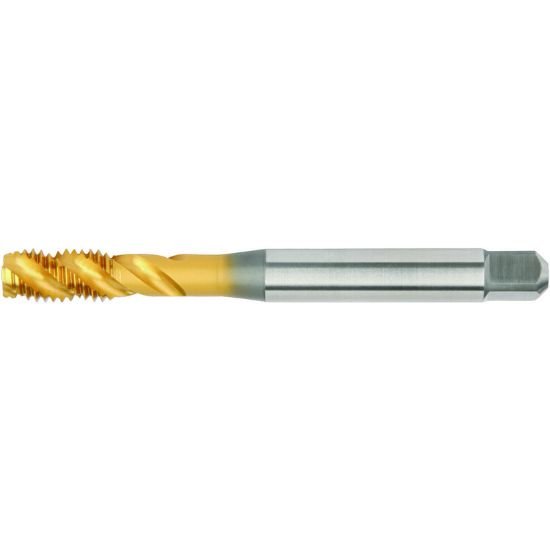

Picture of Widia/Kennametal 5402223 M24-1.50mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Widia/Kennametal 5402223 M24-1.50mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Part Number: WID5402223
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$263.44
SKU: 1170958

Description

WIDIA 5402223 M24x1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC 6H Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 5.5120 140.00MM
Shank/Pilot Dia 0.7600 19.30MM
Flutes/Inserts 4
Thread Pitch 1.50MM
Thread Size M24
Tap Drill Range 0.8874 22.54MM - 0.8988 22.83MM
Tap Square 0.5710
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating DLC
Standards & Identification
Dimension Standard DIN/DIN
