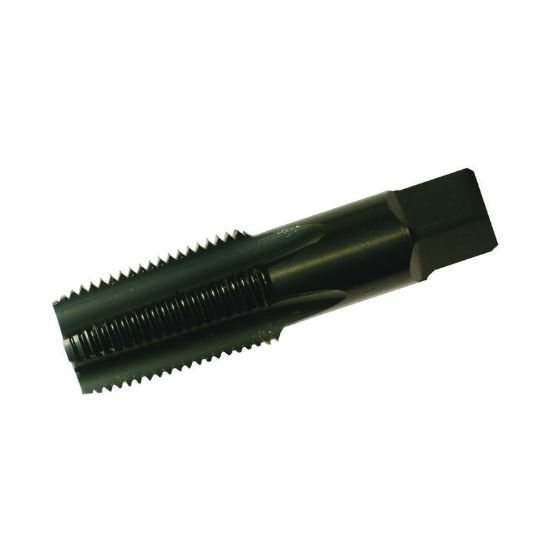

Picture of Widia/Kennametal 16245 2-11.50TPI Pipe Spiral Flute Pipe 6.0P HSS Uncoated

Widia/Kennametal 16245 2-11.50TPI Pipe Spiral Flute Pipe 6.0P HSS Uncoated

Part Number: WID16245

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168480
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2748143 2"x11.50TPI Pipe Spiral Flute Pipe 6.0P HSS Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 4.2520 108.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 7
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 2"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 2.1874 55.56MM
Tap Square 1.4060
Tap Chamfer 6.0P
