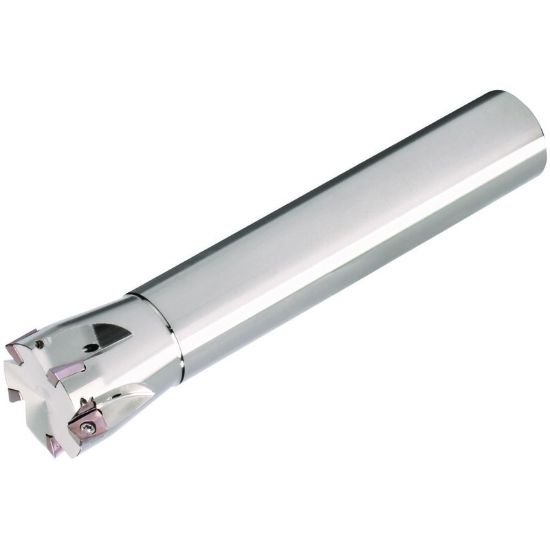

Picture of Widia/Kennametal 15396440800 90.0° Milling Cutter 0.500 Cutter Diameter Cylindrical 0.500

Widia/Kennametal 15396440800 90.0° Milling Cutter 0.500 Cutter Diameter Cylindrical 0.500

Part Number: WID3786361 0.500 x 0.500 x 0.236 x 3.270 ISO: 15396440800 ANSI:15396440800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1017978
Vendor: Sussex Tool and Supply
$216.61
WIDIA 3786361 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.2701 83.06MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.2362 6.00MM
Cut Type Finishing, Roughing, Semi Finishing
Insert Style BD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 7
Hand Right Hand
Max RPM 45800
Cutting Edge Angle 90.0°
