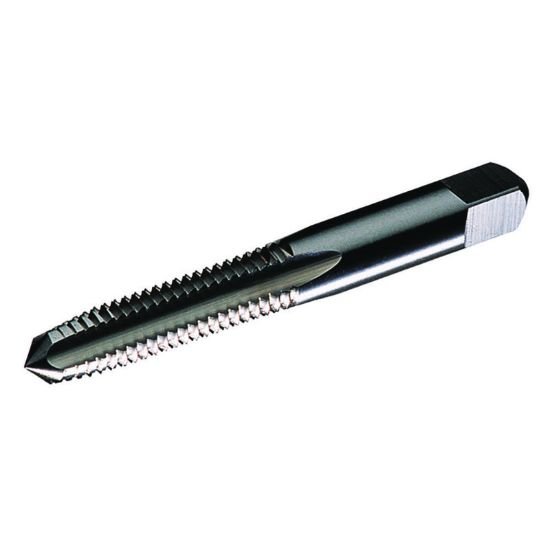

Picture of Widia/Kennametal 14895 M20-2.50mm Hand Tap Bottoming 1.0P-2.0P HSSE Uncoated

Widia/Kennametal 14895 M20-2.50mm Hand Tap Bottoming 1.0P-2.0P HSSE Uncoated

Part Number: WID14895

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1261211
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2749102 M20x2.50MM Hand Tap Bottoming 1.0P-2.0P HSSE Uncoated D7 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 4.4690 113.51MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6520 16.56MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M20
Thread Limit D7
Tap Style Hand Tap
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Tap Chamfer 1.0P-2.0P
