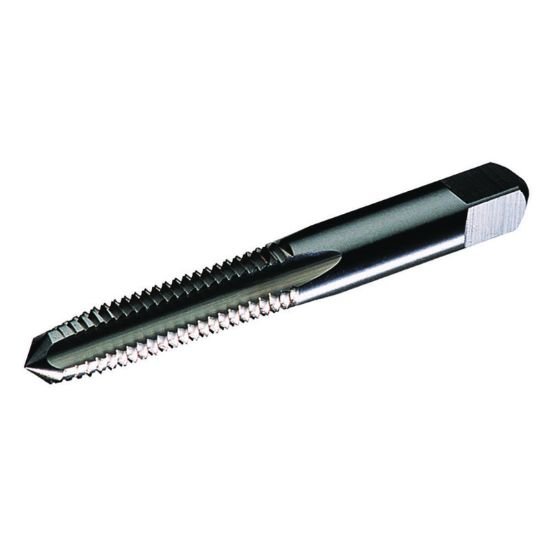

Picture of Widia/Kennametal 14830 M12-1.75mm Hand Tap Plug 3.0P-5.5P HSSE Uncoated

Widia/Kennametal 14830 M12-1.75mm Hand Tap Plug 3.0P-5.5P HSSE Uncoated

Part Number: WID14830

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1136838
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2749141 M12x1.75MM Hand Tap Plug 3.0P-5.5P HSSE Uncoated D6 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 3.3740 85.70MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D6
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Chamfer 3.0P-5.5P
