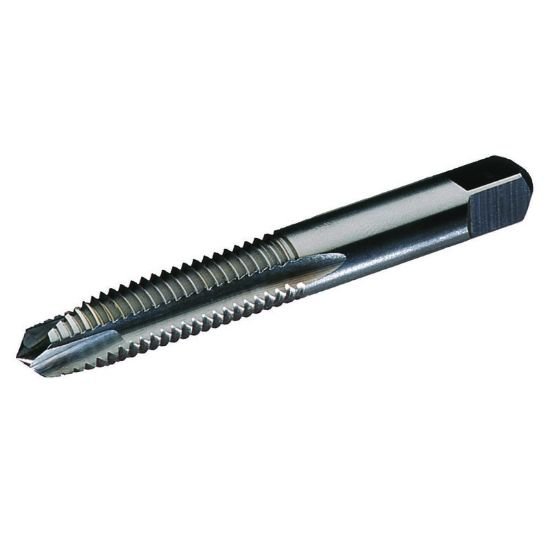

Picture of Widia/Kennametal 13282 1/4-28.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 13282 1/4-28.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID13282

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1241503
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2750119 1/4"x28.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H4/GH4
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Tap Chamfer 3.0P-5.5P
