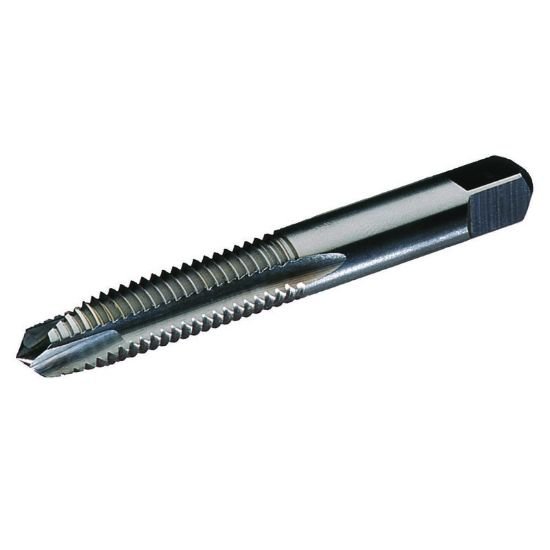

Picture of Widia/Kennametal 13195 5/8-11.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide

Widia/Kennametal 13195 5/8-11.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide

Part Number: WID13195

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169112
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2750257 5/8"x11.00TPI Hand Tap Plug 3.0P-5.5P HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 3.8110 96.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 11.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Tap Chamfer 3.0P-5.5P
