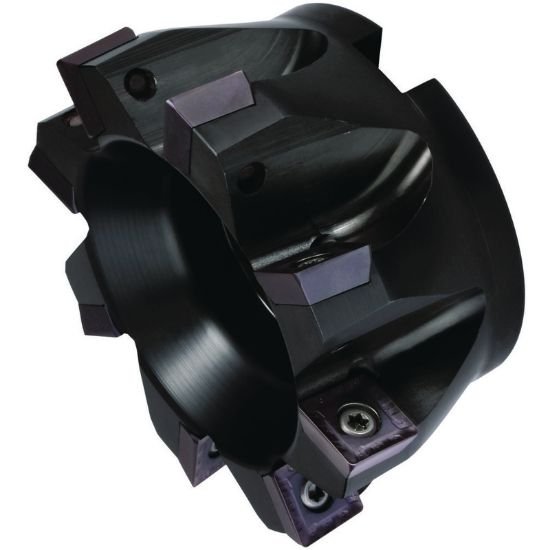

Picture of Widia/Kennametal 12396944200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

Widia/Kennametal 12396944200 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

Part Number: WID2003562 ISO: 12396944200 ANSI:12396944200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1017822
Vendor: Sussex Tool and Supply
$683.41
WIDIA 2003562 90.0°, Face Mill SHELL0.8661 Positive 2.4800 62.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.8661 22.00MM
Overall Length 1.5750 40.01MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 2.4800 62.99MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.4724 12.00MM
Cut Type Roughing, Semi Finishing
Insert Style SD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 15
Hand Right Hand
Max RPM 16100
Cutting Edge Angle 90.0°
