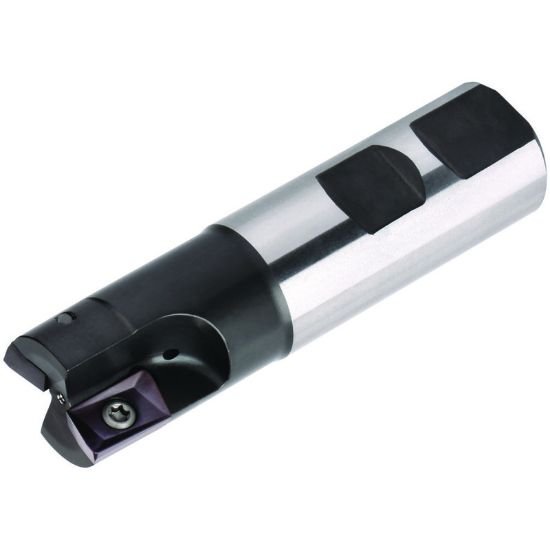

Picture of Widia/Kennametal 12396923400 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

Widia/Kennametal 12396923400 90.0° Milling Cutter 1.575 Cutter Diameter Cylindrical 1.259

Part Number: WID2003539 1.575 x 1.260 x 0.551 x 4.331 ISO: 12396923400 ANSI:12396923400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1017814
Vendor: Sussex Tool and Supply
$450.87
WIDIA 2003539 90.0°, Face Mill End Mill Cylindrical 1.2598 Positive 1.5750 40.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2598 32.00MM
Overall Length 4.3310 110.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 4
Tool Dia 1.5750 40.01MM
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.5510 14.00MM
Cut Type Roughing, Semi Finishing
Insert Style XP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 14000
Cutting Edge Angle 90.0°
