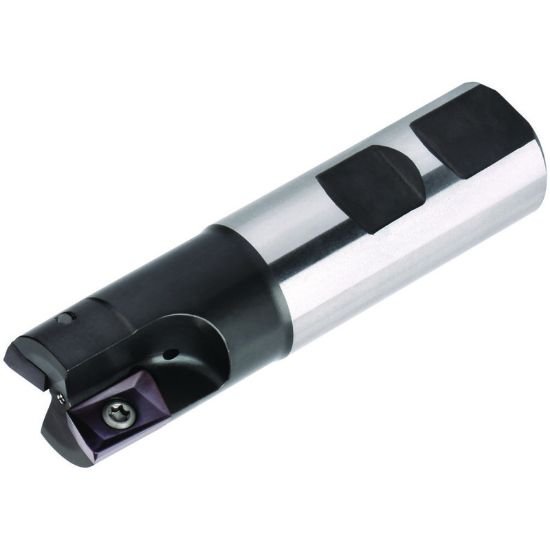

Picture of Widia/Kennametal 12396922600 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

Widia/Kennametal 12396922600 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

Part Number: WID2003475 0.984 x 0.984 x 0.550 x 3.780 ISO: 12396922600 ANSI:12396922600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1017808
Vendor: Sussex Tool and Supply
$322.33
WIDIA 2003475 90.0°, End Mill End Mill Cylindrical 0.9843 Positive 0.9840 24.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.9843 25.00MM
Overall Length 3.7795 96.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Tool Dia 0.9840 24.99MM
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.5500 13.97MM
Cut Type Roughing, Semi Finishing
Insert Style XP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 17600
Cutting Edge Angle 90.0°
