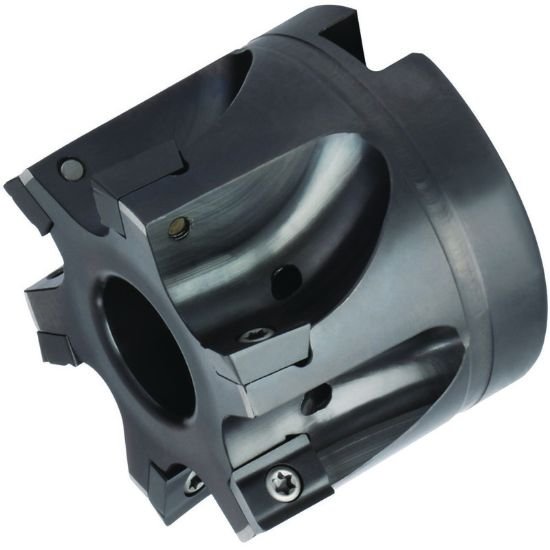

Picture of Widia/Kennametal 12396906400 90.0° Milling Cutter 1.574 Cutter Diameter Face Mill 0.866

Widia/Kennametal 12396906400 90.0° Milling Cutter 1.574 Cutter Diameter Face Mill 0.866

Part Number: WID2223028 ISO: 12396906400 ANSI:12396906400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1017881
Vendor: Sussex Tool and Supply
$580.09
WIDIA 2223028 Parallelogram 90.0°, End Mill SHELL0.8661 Positive 1.5748 40.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.8661 22.00MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 6
Tool Dia 1.5748 40.00MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.3740 9.50MM
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 10
Hand Right Hand
Max RPM 14000
Cutting Edge Angle 90.0°
