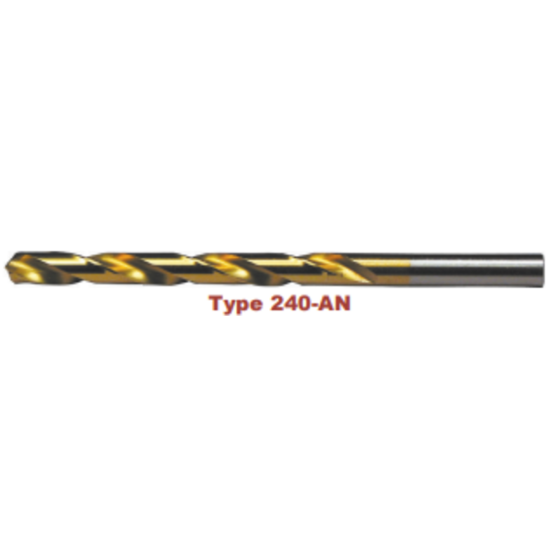

VIKING 98440 #9 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK98440
Delivery date: 3-5 days
$4.33

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 6
Coating TiN
Made In USA Yes
Application Drilling
Shipping State Minnesota
Dimensional Specifications
Cut Dia Min 0.1960 4.98MM - #9
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel
Cutter Dia 0.1960 4.98MM - #9
Overall Len 3.6250 92.08MM
Machine Side Connection Size 0.1960 4.98MM
Drill Length Type Jobber
Shank/Pilot Dia 0.1960 4.98MM - #9
Included Angle 135°
Tool Material High Speed Steel
Flutes/Inserts 2
Flute Length 2.4380 61.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
