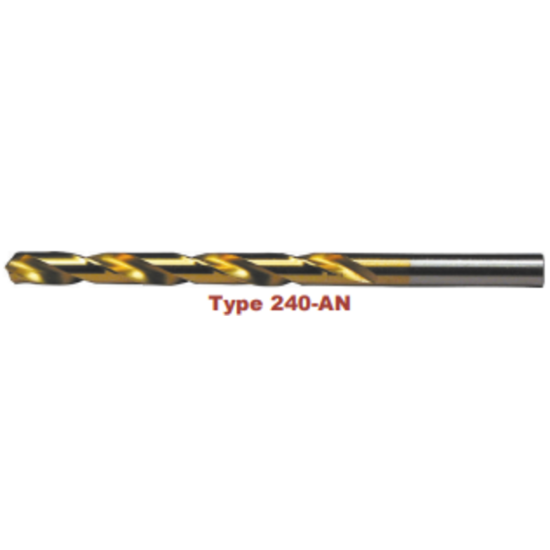

VIKING 98310 #22 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK98310
Delivery date: 3-5 days
$2.90

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Application Drilling
Coating TiN
Made In USA Yes
Package Size 6
Dimensional Specifications
Included Angle 135°
Flutes/Inserts 2
Cutter Dia 0.1570 3.99MM - #22
Tool Material High Speed Steel
Machine Side Connection Size 0.1570 3.99MM
Drill Length Type Jobber
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1570 3.99MM - #22
Overall Len 3.1250 79.38MM
Flute Length 2.0000 50.80MM
Cut Rating <25HRC Steel, Stainless Steel
Cut Dia Min 0.1570 3.99MM - #22
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
