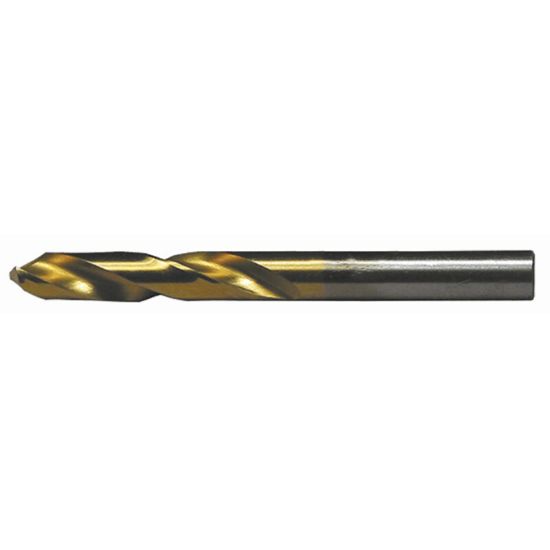

VIKING 96640 #4 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96640
Delivery date: 3-5 days
$4.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA Yes
Shipping State Minnesota
Application Drilling
Package Size 12
Dimensional Specifications
Cut Rating <25HRC Steel
Cut Dia Min 0.2090 5.30MM - #4
Tool Material High Speed Steel
Machine Side Connection Size 0.2090 5.31MM
Flutes/Inserts 2
Drill Length Type Screw
Shank/Pilot Dia 0.2090 5.31MM - #4
Overall Len 2.3750 60.33MM
Flute Length 1.2500 31.75MM
Cutter Dia 0.2090 5.31MM - #4
Included Angle 135°
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
