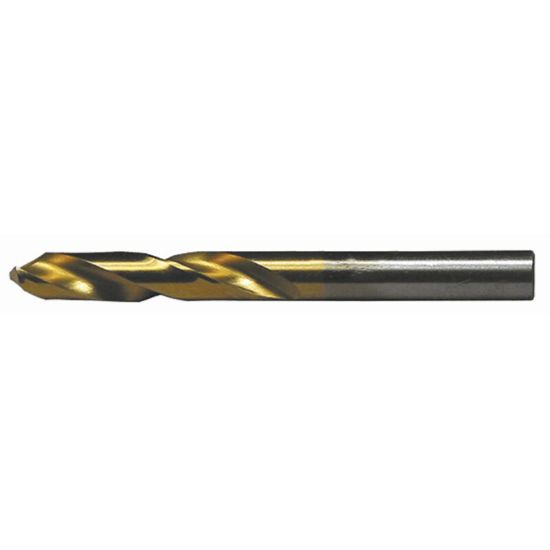

VIKING 96630 #5 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96630
Delivery date: 3-5 days
$4.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Package Size 12
Made In USA Yes
Coating TiN
Shipping State Minnesota
Dimensional Specifications
Flute Length 1.2500 31.75MM
Cut Rating <25HRC Steel
Tool Material High Speed Steel
Shank/Pilot Dia 0.2055 5.22MM - #5
Flutes/Inserts 2
Drill Length Type Screw
Machine Side Connection Type Cylindrical
Included Angle 135°
Cutter Dia 0.2055 5.22MM - #5
Cut Dia Min 0.2055 5.22MM - #5
Machine Side Connection Size 0.2055 5.22MM
Overall Len 2.3750 60.33MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
