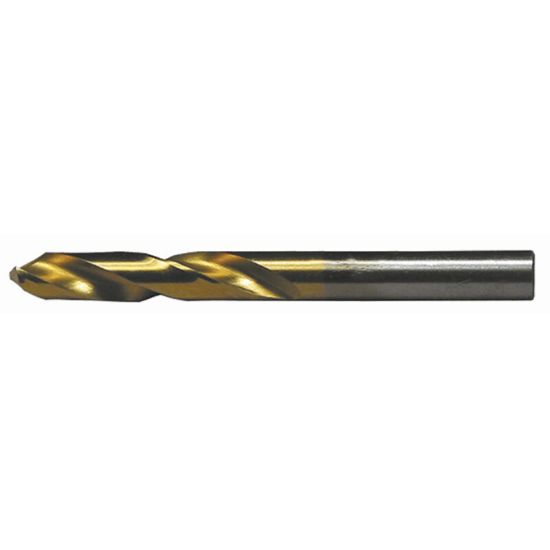

VIKING 96560 #12 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96560
Delivery date: 3-5 days
$3.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Package Size 12
Coating TiN
Application Drilling
Dimensional Specifications
Cut Rating <25HRC Steel
Cutter Dia 0.1890 4.80MM - #12
Tool Material High Speed Steel
Machine Side Connection Size 0.1890 4.80MM
Flutes/Inserts 2
Drill Length Type Screw
Machine Side Connection Type Cylindrical
Overall Len 2.2500 57.15MM
Shank/Pilot Dia 0.1890 4.80MM - #12
Cut Dia Min 0.1890 4.80MM - #12
Flute Length 1.1880 30.18MM
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
