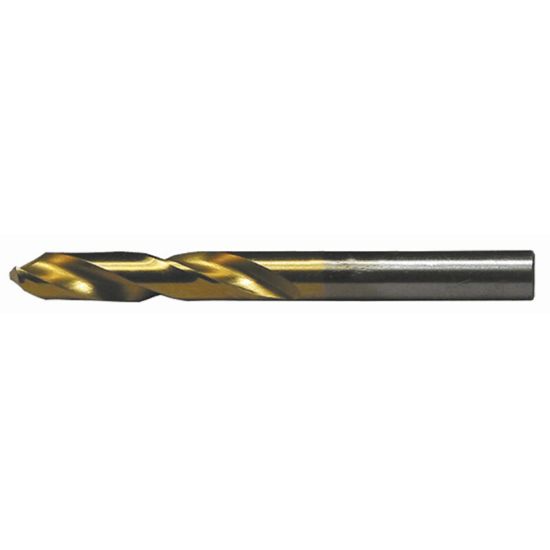

VIKING 96550 #13 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96550
Delivery date: 3-5 days
$3.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 12
Coating TiN
Shipping State Minnesota
Application Drilling
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1850 4.70MM - #13
Included Angle 135°
Cutter Dia 0.1850 4.70MM - #13
Machine Side Connection Size 0.1850 4.70MM
Cut Rating <25HRC Steel
Tool Material High Speed Steel
Overall Len 2.1875 55.56MM
Flutes/Inserts 2
Flute Length 1.1250 28.58MM
Drill Length Type Screw
Cut Dia Min 0.1850 4.70MM - #13
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
