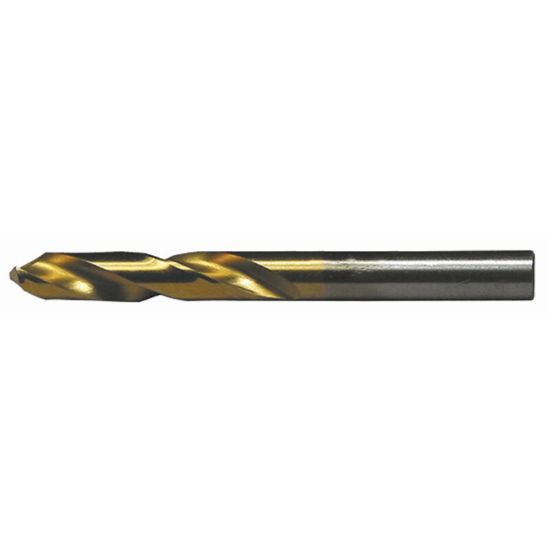

VIKING 96420 #26 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96420
Delivery date: 3-5 days
$2.77

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 12
Coating TiN
Made In USA Yes
Application Drilling
Dimensional Specifications
Included Angle 135°
Cutter Dia 0.1470 3.73MM - #26
Shank/Pilot Dia 0.1470 3.73MM - #26
Cut Dia Min 0.1470 3.73MM - #26
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1470 3.73MM
Overall Len 2.0625 52.39MM
Flute Length 1.0000 25.40MM
Cut Rating <25HRC Steel
Tool Material High Speed Steel
Flutes/Inserts 2
Drill Length Type Screw
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
