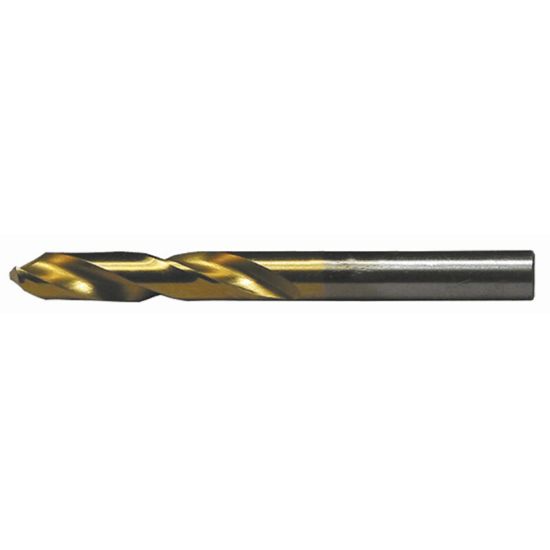

VIKING 96360 #32 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96360
Delivery date: 3-5 days
$2.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 12
Application Drilling
Shipping State Minnesota
Coating TiN
Dimensional Specifications
Shank/Pilot Dia 0.1160 2.95MM - #32
Flute Length 0.8750 22.23MM
Tool Material High Speed Steel
Machine Side Connection Size 0.1160 2.95MM
Drill Length Type Screw
Included Angle 135°
Cutter Dia 0.1160 2.95MM - #32
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel
Cut Dia Min 0.1160 2.95MM - #32
Flutes/Inserts 2
Overall Len 1.8750 47.63MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
