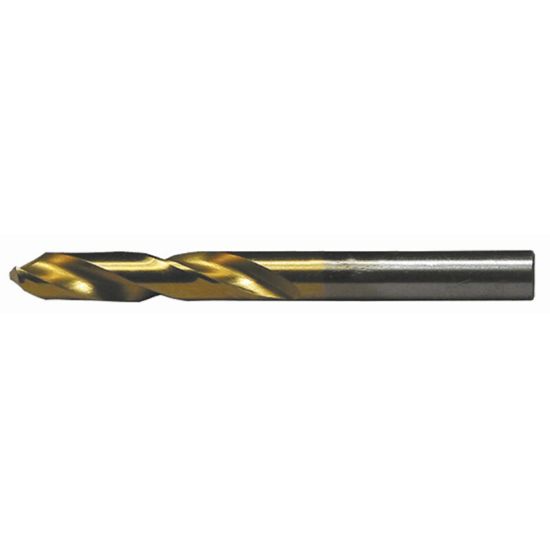

VIKING 96190 #49 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96190
Delivery date: 3-5 days
$2.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 12
Shipping State Minnesota
Application Drilling
Coating TiN
Dimensional Specifications
Machine Side Connection Size 0.0730 1.85MM
Shank/Pilot Dia 0.0730 1.85MM - #49
Cutter Dia 0.0730 1.85MM - #49
Machine Side Connection Type Cylindrical
Overall Len 1.6875 42.86MM
Cut Rating <25HRC Steel
Flutes/Inserts 2
Flute Length 0.6880 17.48MM
Cut Dia Min 0.0730 1.85MM - #49
Tool Material High Speed Steel
Drill Length Type Screw
Included Angle 135°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
