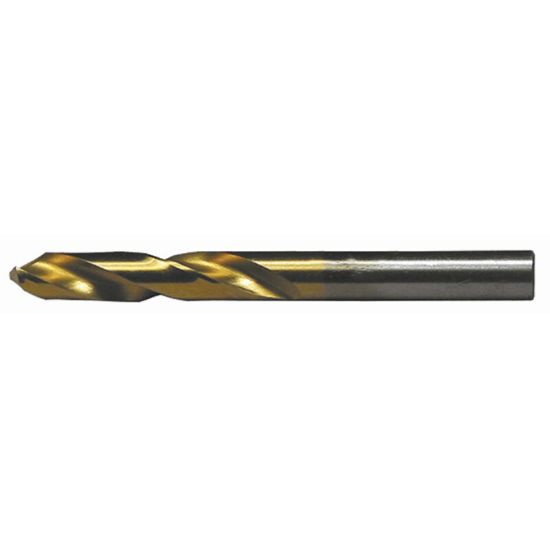

VIKING 96110 #57 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK96110
Delivery date: 3-5 days
$2.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 12
Application Drilling
Coating TiN
Shipping State Minnesota
Dimensional Specifications
Tool Material High Speed Steel
Overall Len 1.3750 34.93MM
Drill Length Type Screw
Included Angle 135°
Cut Dia Min 0.0430 1.09MM - #57
Machine Side Connection Size 0.0430 1.09MM
Cutter Dia 0.0430 1.09MM - #57
Machine Side Connection Type Cylindrical
Flute Length 0.5000 12.70MM
Shank/Pilot Dia 0.0430 1.09MM - #57
Cut Rating <25HRC Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
