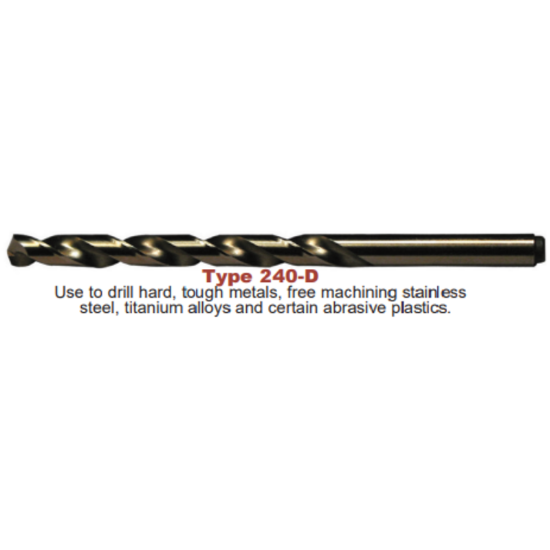

VIKING 8210 3/8 Cobalt Drill Jobber Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK08210
Delivery date: 3-5 days
$8.36

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Package Size 6
Made In USA Yes
Coating TiN
Shipping State Minnesota
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Flute Length 3.6250 92.08MM
Machine Side Connection Size 0.3750 9.53MM
Included Angle 135°
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Flutes/Inserts 2
Tool Material Cobalt
Drill Length Type Jobber
Cut Dia Min 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
