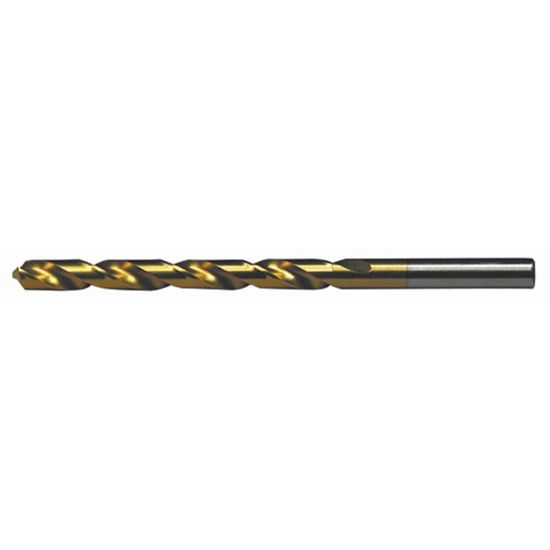

VIKING 81360 #77 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK81360
Delivery date: 3-5 days
$4.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Shipping State Minnesota
Made In USA Yes
Package Size 12
Dimensional Specifications
Cut Dia Min 0.0180 0.46MM - #77
Tool Material High Speed Steel
Flutes/Inserts 2
Flute Length 0.1880 4.78MM
Drill Length Type Jobber
Overall Len 0.8750 22.23MM
Cutter Dia 0.0180 0.46MM - #77
Included Angle 118°
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0180 0.46MM
Shank/Pilot Dia 0.0180 0.46MM - #77
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
