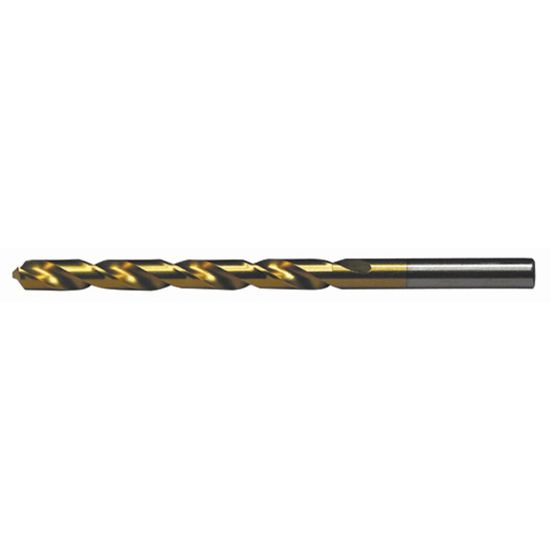

VIKING 81280 #69 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK81280
Delivery date: 3-5 days
$3.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 12
Shipping State Minnesota
Made In USA Yes
Coating TiN
Application Drilling
Dimensional Specifications
Cutter Dia 0.0292 0.74MM - #69
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Cut Dia Min 0.0292 0.74MM - #69
Machine Side Connection Type Cylindrical
Tool Material High Speed Steel
Flutes/Inserts 2
Flute Length 0.5000 12.70MM
Included Angle 118°
Machine Side Connection Size 0.0292 0.74MM
Shank/Pilot Dia 0.0292 0.74MM - #69
Drill Length Type Jobber
Overall Len 1.3750 34.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
