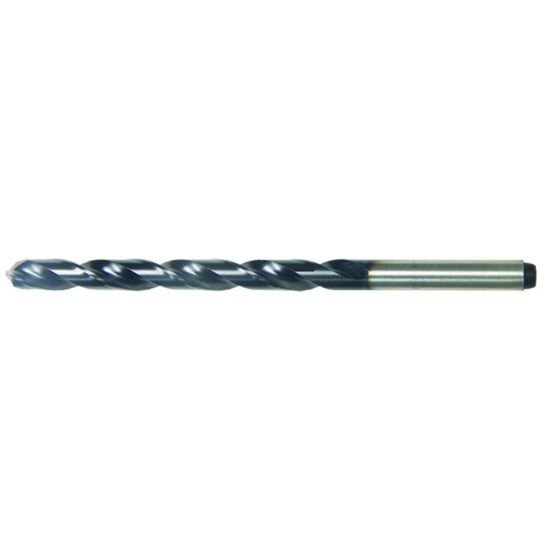

VIKING 80983 #44 Cobalt Drill Jobber Length TIALN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK80983
Delivery date: 3-5 days
$3.17

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 6
Application Drilling
Made In USA Yes
Coating TiAlN
Dimensional Specifications
Machine Side Connection Size 0.0860 2.18MM
Drill Length Type Jobber
Cutter Dia 0.0860 2.18MM - #44
Flutes/Inserts 2
Flute Length 1.1250 28.58MM
Machine Side Connection Type Cylindrical
Included Angle 135°
Overall Len 2.1250 53.98MM
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Shank/Pilot Dia 0.0860 2.18MM - #44
Cut Dia Min 0.0860 2.18MM - #44
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
Job Shop Yes
