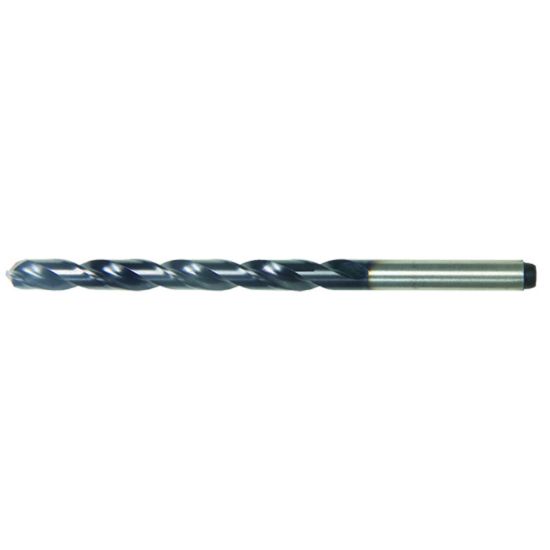

VIKING 80783 #24 Cobalt Drill Jobber Length TIALN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK80783
Delivery date: 3-5 days
$4.13

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Package Size 6
Coating TiAlN
Shipping State Minnesota
Application Drilling
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.1520 3.86MM - #24
Cut Dia Min 0.1520 3.86MM - #24
Machine Side Connection Type Cylindrical
Drill Length Type Jobber
Machine Side Connection Size 0.1520 3.86MM
Tool Material Cobalt
Shank/Pilot Dia 0.1520 3.86MM - #24
Included Angle 135°
Flutes/Inserts 2
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Overall Len 3.1250 79.38MM
Flute Length 2.0000 50.80MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
