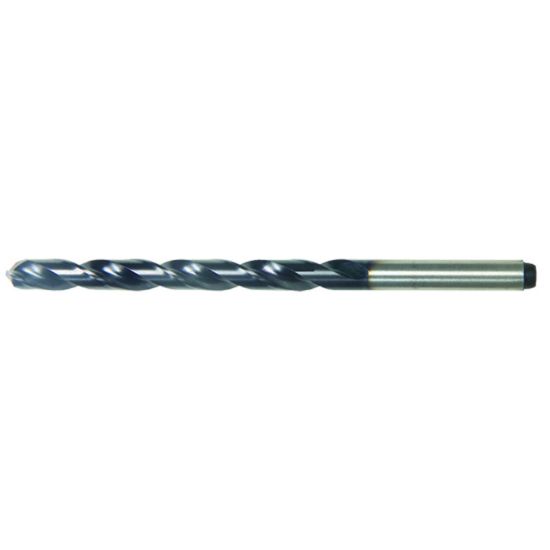

VIKING 80513 W Cobalt Drill Jobber Length TIALN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK80513
Delivery date: 3-5 days
$15.67

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Package Size 3
Shipping State Minnesota
Made In USA Yes
Application Drilling
Dimensional Specifications
Cutter Dia 0.3860 9.80MM - W
Machine Side Connection Size 0.3858 9.80MM
Overall Len 5.1250 130.18MM
Flutes/Inserts 2
Flute Length 3.7500 95.25MM
Machine Side Connection Type Cylindrical
Tool Material Cobalt
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.3860 9.80MM - W
Shank/Pilot Dia 0.3858 9.80MM - W
Drill Length Type Jobber
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
