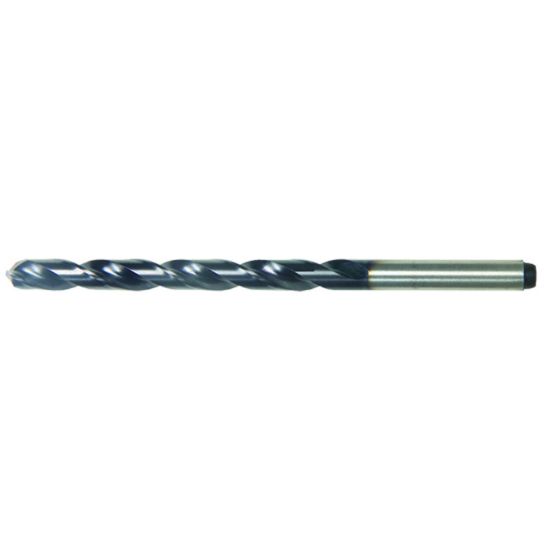

VIKING 80283 1/2 Cobalt Drill Jobber Length TIALN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK80283
Delivery date: 3-5 days
$22.54

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Application Drilling
Coating TiAlN
Package Size 3
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5000 12.70MM - 1/2
Drill Length Type Jobber
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Included Angle 135°
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Flutes/Inserts 2
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Overall Len 6.0000 152.40MM
Flute Length 4.5000 114.30MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
