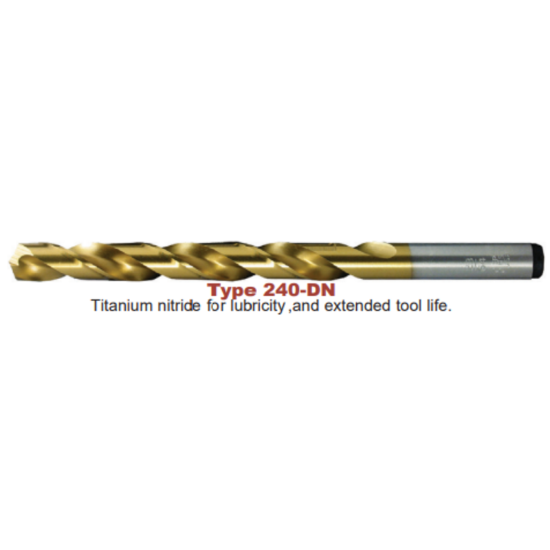

Picture of VIKING 77241 #25 Cobalt Drill Jobber Length TIN

VIKING 77241 #25 Cobalt Drill Jobber Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK77241
Delivery date: 3-5 days
$3.24

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Coating TiN
Shipping State Minnesota
Package Size 6
Made In USA Yes
Dimensional Specifications
Flute Length 1.8750 47.63MM
Tool Material Cobalt
Cut Dia Min 0.1496 3.80MM - #25
Included Angle 135°
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1495 3.80MM
Overall Len 3.0000 76.20MM
Drill Length Type Jobber
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Shank/Pilot Dia 0.1495 3.80MM - #25
Cutter Dia 0.1495 3.80MM - #25
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
