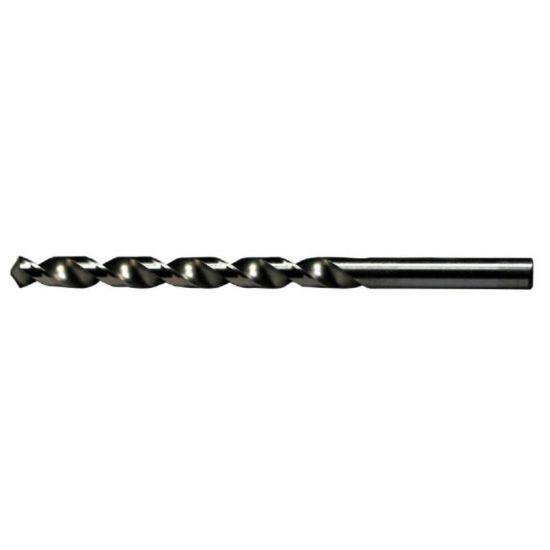

VIKING 7060 #21 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK07060
Delivery date: 3-5 days
$1.19

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Application Drilling
Package Size 12
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Included Angle 118°
Cut Dia Min 0.1590 4.04MM - #21
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 0.1590 4.04MM - #21
Overall Len 3.2500 82.55MM
Drill Length Type Jobber
Machine Side Connection Size 0.1590 4.04MM
Flute Length 2.1250 53.98MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1590 4.04MM - #21
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
