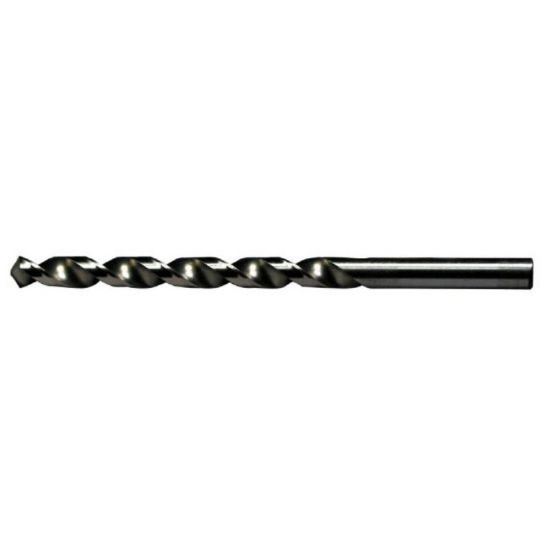

VIKING 6910 #6 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK06910
Delivery date: 3-5 days
$2.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA Yes
Package Size 12
Shipping State Minnesota
Dimensional Specifications
Cutter Dia 0.2040 5.18MM - #6
Tool Material High Speed Steel
Flute Length 2.5000 63.50MM
Machine Side Connection Type Cylindrical
Overall Len 3.7500 95.25MM
Included Angle 118°
Drill Length Type Jobber
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.2040 5.18MM - #6
Machine Side Connection Size 0.2040 5.18MM
Shank/Pilot Dia 0.2040 5.18MM - #6
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
