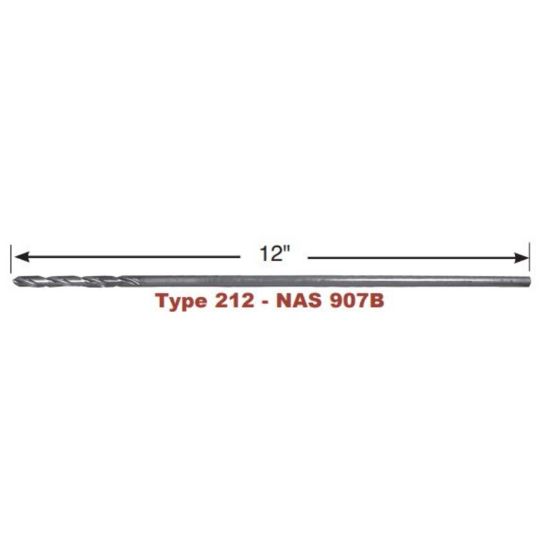

VIKING 69030 31/64 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK69030
Delivery date: 3-5 days
$20.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 1
Made In USA Yes
Application Drilling
Dimensional Specifications
Machine Side Connection Size 0.4844 12.30MM
Machine Side Connection Type Cylindrical
Overall Len 12.0000 304.80MM
Cutter Dia 0.4844 12.30MM - 31/64
Cut Dia Min 0.4844 12.30MM - 31/64
Flutes/Inserts 2
Flute Length 4.3750 111.13MM
Cut Rating <25HRC Steel, Grey Iron
Shank/Pilot Dia 0.4844 12.30MM - 31/64
Tool Material High Speed Steel
Included Angle 135°
Drill Length Type Aircraft
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
