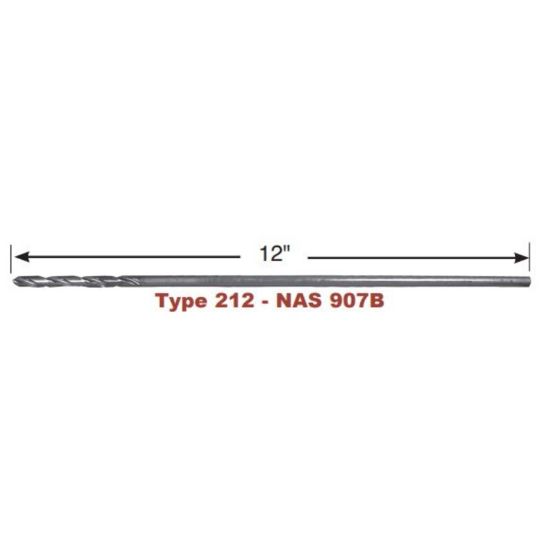

VIKING 69020 15/32 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK69020
Delivery date: 3-5 days
$16.77

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Package Size 1
Made In USA Yes
Shipping State Minnesota
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4688 11.91MM - 15/32
Drill Length Type Aircraft
Flute Length 4.3130 109.55MM
Included Angle 135°
Cut Rating <25HRC Steel, Grey Iron
Machine Side Connection Size 0.4688 11.91MM
Cutter Dia 0.4688 11.91MM - 15/32
Tool Material High Speed Steel
Shank/Pilot Dia 0.4688 11.91MM - 15/32
Flutes/Inserts 2
Overall Len 12.0000 304.80MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
