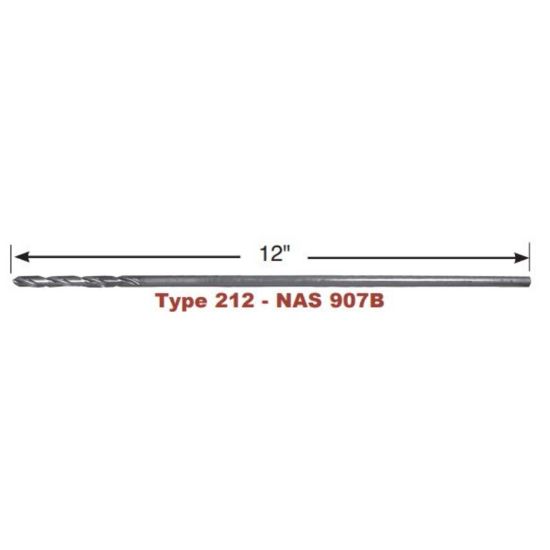

VIKING 68930 21/64 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK68930
Delivery date: 3-5 days
$12.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Shipping State Minnesota
Application Drilling
Dimensional Specifications
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Rating <25HRC Steel, Grey Iron
Flute Length 3.3130 84.15MM
Drill Length Type Aircraft
Machine Side Connection Size 0.3281 8.33MM
Cutter Dia 0.3281 8.33MM - 21/64
Overall Len 12.0000 304.80MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.3281 8.33MM - 21/64
Shank/Pilot Dia 0.3281 8.33MM - 21/64
Included Angle 135°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
